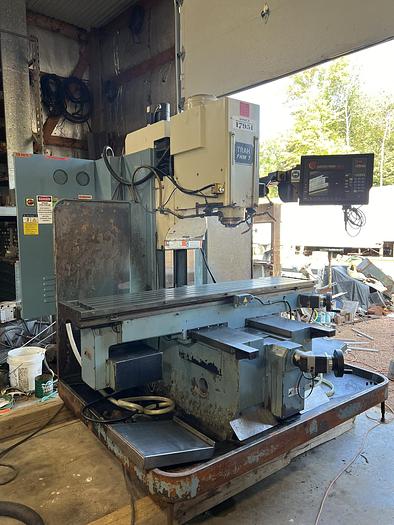

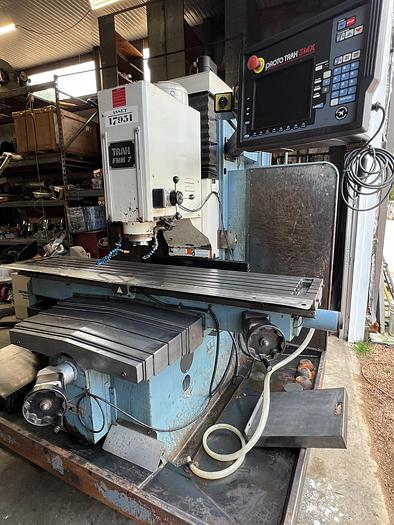

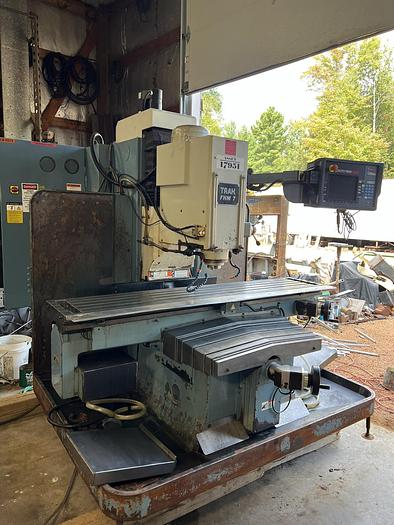

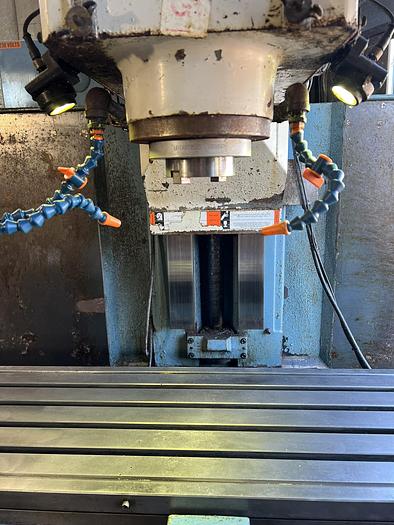

TRAK FHM7 CNC Bed Mill with long 23" x 60" travels, 7.5HP

TRAK's CNC BED MILL - 23" x 60" TRAVELS - 7.5HP SPINDLE MOTOR

Model: TRAK FHM7

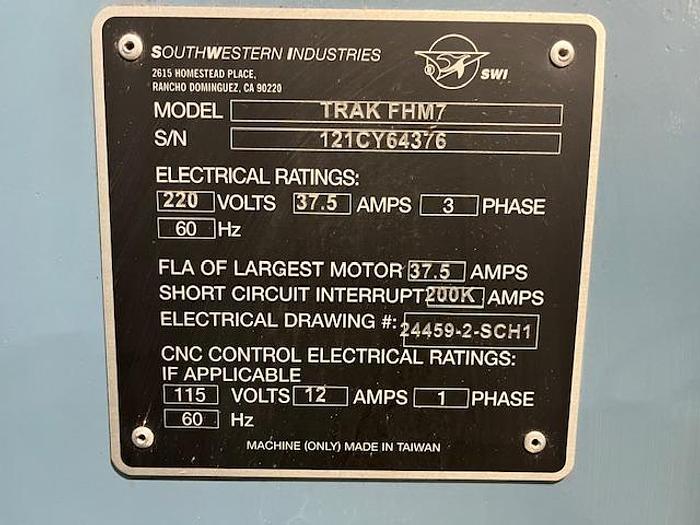

S/N: 121CY64376

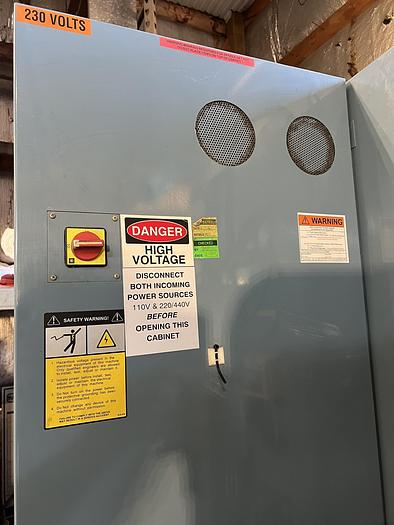

Wired: 220V, 3PH

Age: It is a 2012 machine with a 2019 updated SMX control unit.

Condition: Used, Very Good Condition

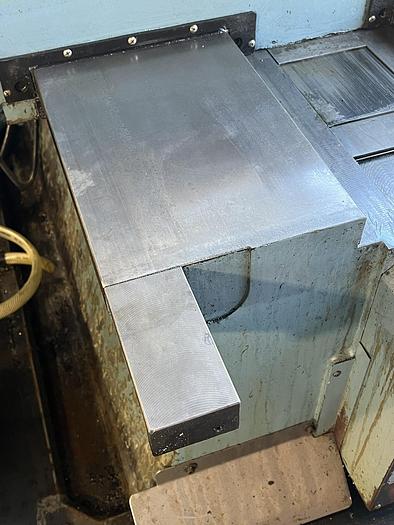

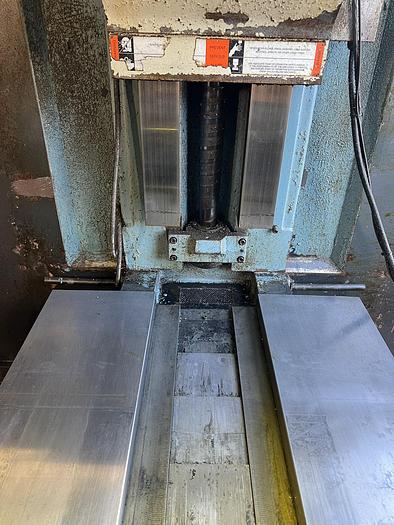

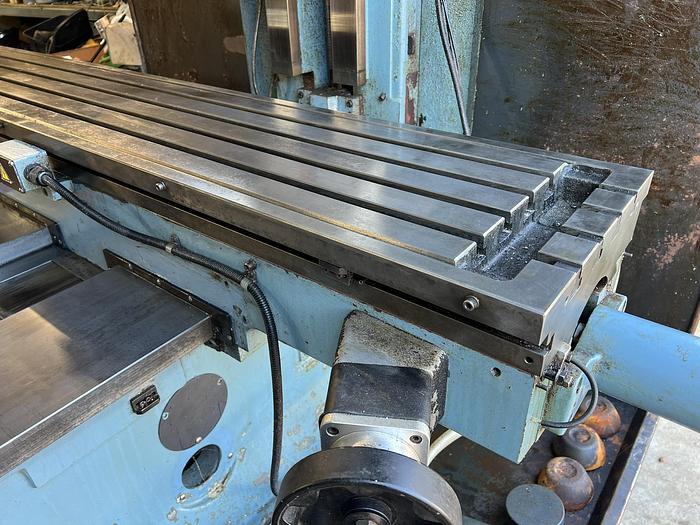

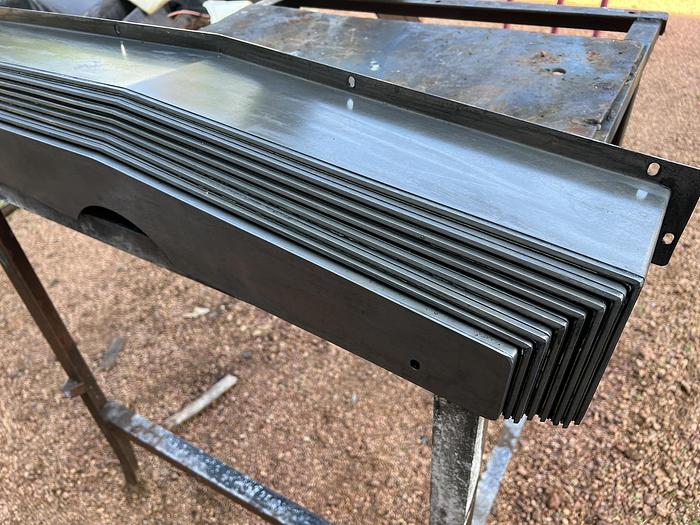

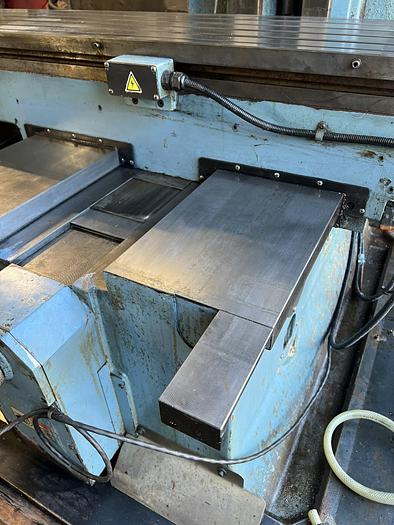

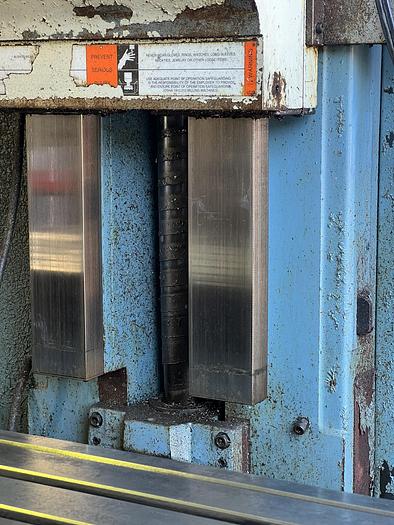

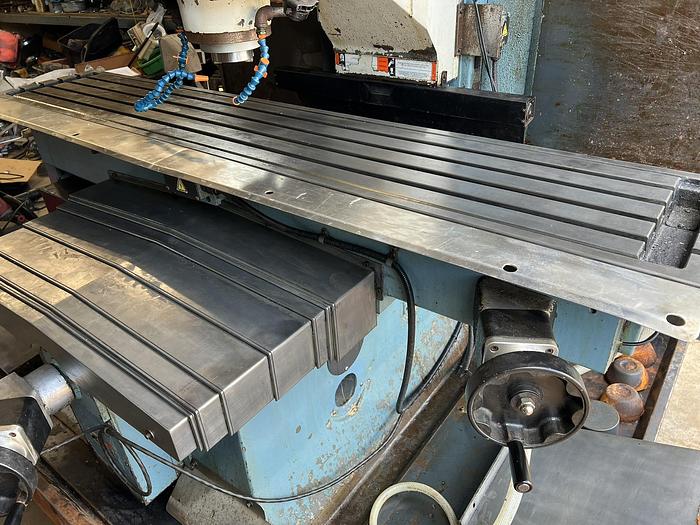

This mill came out of a R&D design shop, it has never seen production. We removed the guarding so you all can see the ways and how clean they are. Also we checked the serial number and the machine is actually a 2012 machine, with an updated SMX Control in 2019. This is one of the cleanest machines we have seen in a long time for being 12 years old. It is a very tight machine, there is no visible wear at all on the ways. The mechanics and control of the machine are in great like new condition.

This is the largest mill in TRAK's line, with outstanding travels and capacities

ADDITIONAL FEATURES AND INFORMATION - TRAK Bed Mills FHM7

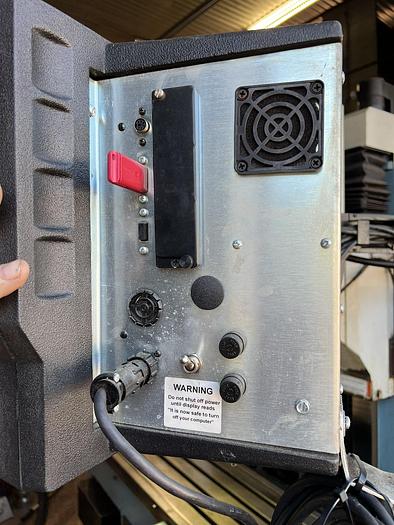

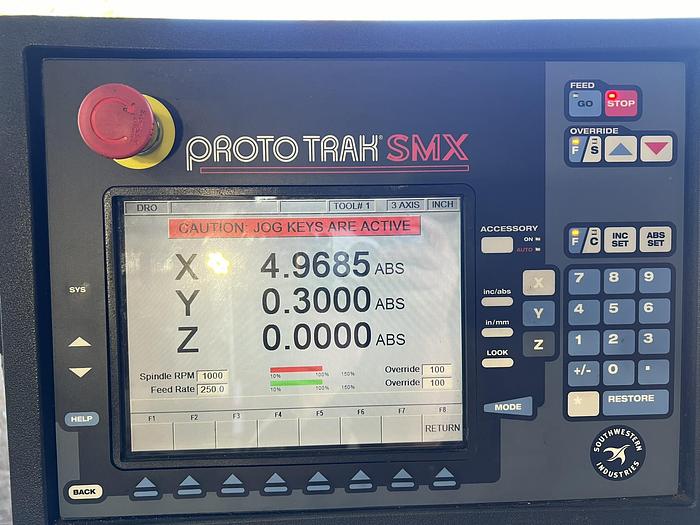

 ProtoTRAK SMX CNC

 A solid ram that moves along the column providing mass for heavy cuts

 Generous Z-axis CNC travel

 Strong and rigid construction

 Two or three-axis CNC operation, your choice

 Programmable spindle speeds

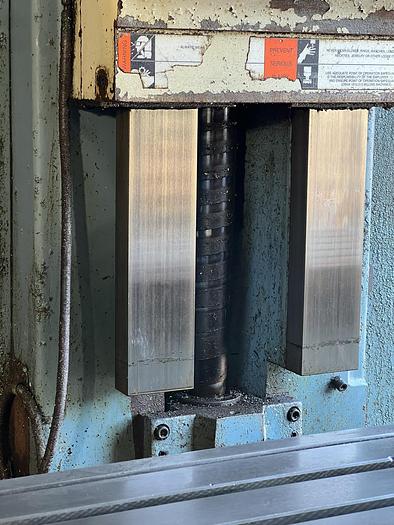

 Precision ground ballscrews installed in the table, saddle and column

 Manual quill with integrated quill and ram encoders

 Wide way surfaces that are hardened and ground, slide ways are Turcite® coated

With these important differences:

 60” X and 23” Y travel and 20.50” Z travel

 Strong and rigid – over 7600 lbs. of machine mass

 Fixed head for outstanding rigidity

 Standard electronic hand wheels with selectable fine/coarse hand wheel resolution

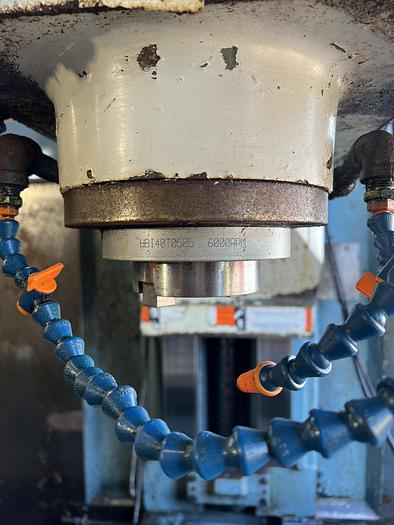

 NMTB40 spindle taper and over 5” of quill diameter

 250 inch per minute rapid travels

 Specifications

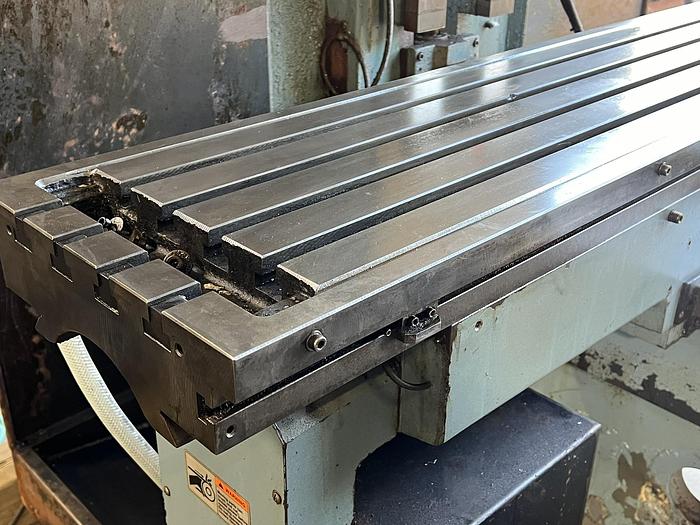

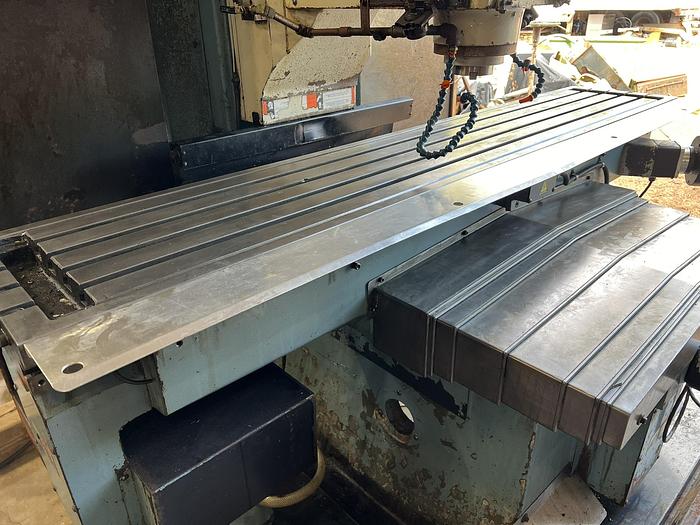

 Table size – 76″ x 14″

 T-slots (number x width x pitch) – 4 x 16mm x 63.5mm

 Travel (X, Y, Z axis) – 60″ x 23″ x 20.5″

 Quill diameter – 5.06″

 Spindle taper – NMTB 40

 Spindle speed range RPM – 200-5000

 Spindle center to column face – 23″

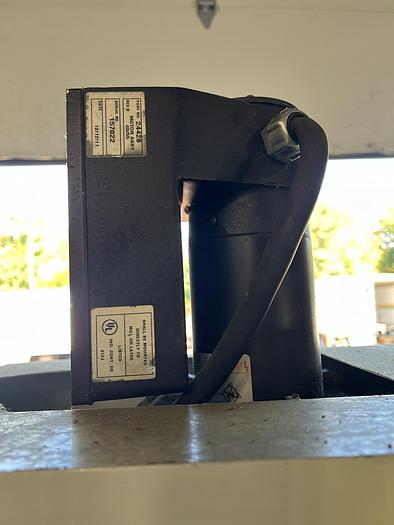

 Spindle motor power – 7.5 HP

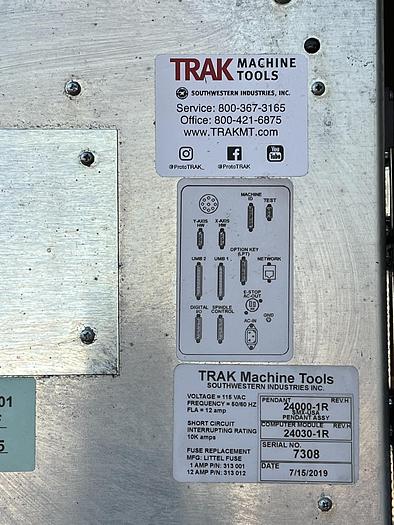

 Power requirement, control – 110V, 1P, 15A

 Power requirement, machine – 220V, 3P, 60HZ

 Current, Full Load Amps – 37.5 FLA

 Maximum weight of workpiece – 2200 lbs.

 Height of table from bottom of bed – 38.25″

 Maximum spindle nose to table – 21.5″

 Minimum height – 95.5″

 Maximum height – 101″

 Width of machine including table – 110.5″

1. Length with electric box door closed – 93.75″

2. Overall width including full table travel – 171.65″

3. Overall length with electrical door open – 119.5″

4. Footprint – 37″ x 62.2″

5. Way surface – dovetail X axis; square ways Y and Z axis

6. Weight (approximate) net – 7650 lbs.

7. Weight (approximate) shipping – 7975 lbs.

8. Drilling max capacity – 1″ dia.

9. Tapping max capacity – 5/8″

10. Milling max capacity – 7 inch3/min

11. Way surfaces hardened and ground

12. Turcite coating on all slide ways

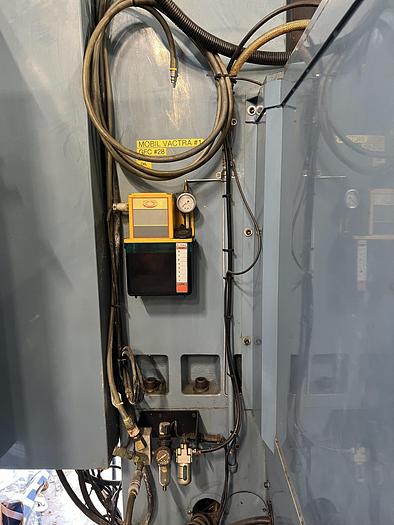

13. Automatic lubrication pump

14. Auxiliary function hardware

15. Limit switches

16. TRAKing/Electric Hand wheels
